AL-WHEEL CHUCK (SM-ALW) |
|
 |
• This is a exclusive chuck of processing the AL-Wheel.
• The 3-Jaws is centering the AL-Wheel and the Finger Jaw is clamping.
• It needs double Cylinder.
|
|
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
Spec
Model
|
Spindle nose NO. | Jaw stroke(Diameter) mm | Plunger stroke mm | Max. permissible input force KN(kgf) | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m |
| SM-ALW 20 | A2-8 | 27 | 35 | 29.4(3000) | 55(5610) | 2,800 | | SM-ALW 22 | A2-8 | 27 | 35 | 29.4(3000) | 73(7446) | 2,600 | | SM-ALW 26 | A2-11 | 27 | 35 | 29.4(3000) | 86(8772) | 2,200 | | SM-ALW 30 | A2-11 | 27 | 35 | 29.4(3000) | 86(8772) | 1,800 |
|
|
Spec
Model
|
weight(With standard soft jaws) | matching cylinder | GD2 | Wheel Size Range(Max) | Wheel Size Range(Min) | |
| SM-ALW 20 | 120 | YDP125 | 30.0(3.06) | 16 | 12 | | SM-ALW 22 | 140 | YDP125 | 40.0(4.1) | 18 | 13 | | SM-ALW 26 | 160 | YDP125 | 45.0(4.59) | 20 | 14 | | SM-ALW 30 | 240 | YDP140 | 100.0(10.2) | 22 | 16 |
|
|
 |
|
Item
Model
|

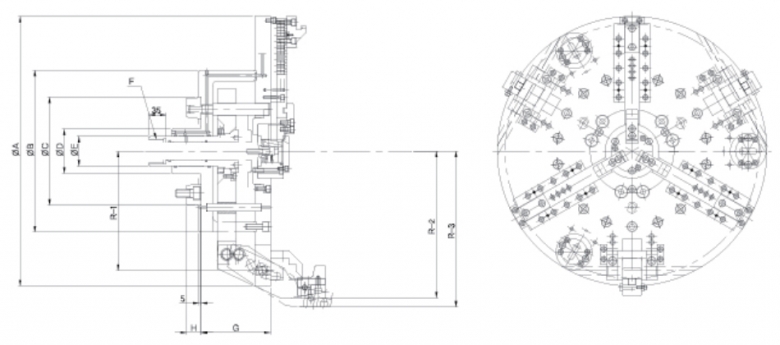

A | B | D | E | F | G |
| SM-ALW 20 | 500 | 300 | 90 | 60 | M50X92.0 | 141 | | SM-ALW 22 | 550 | 330 | 90 | 60 | M50XP2.0 | 141 | | SM-ALW 26 | 600 | 380 | 90 | 60 | M50X92.0 | 141 | | SM-ALW 30 | 660 | 380 | 90 | 60 | M50XP2.0 | 141 |
|
|
Item
Model
|
H | Cro | N1 | GemXL-Size R-2(CL) | GemXL-Size R-3(UCL) | |
| SM-ALW 20 | 141 | 220 | 218.3 | 141 | 30 | | SM-ALW 22 | 141 | 2520 | 243.7 | 141 | 30 | | SM-ALW 26 | 141 | 300 | 269.1 | 141 | 37 | | SM-ALW 30 | 141 | 300 | 294.5 | 141 | 37 |
|
|
