OUT-DIA CLAMP RUBBER COLLET CHUCK (SM-RBC) |
|
 |
• This is full diameter clamp chuck. The Collet bound 3 pireces of rubber.
• It can getting the high precision degree of concentlicity. And also, It has long life by low damaged of Collet.
• The model change time is shorter than other model of Collet Chuck.
|
|
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
Spec
Model
|
Gripping Max | Gripping Min | Max. permissible input force KN(kgf) | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m |
| SM-RBC 32 | 32 | 7 | 14.7(1500) | 39.2(4000) | 4500 | | SM-RBC 50 | 50 | 12 | 24.5(2500) | 68.7(7000) | 4000 | | SM-RBC 65 | 65 | 16 | 39.2(4000) | 117.8(12000) | 3300 | | SM-RBC 90 | 90 | 30 | 47.1(4800) | 147.2(15000) | 2500 |
|
|
Spec
Model
|
weight(With standard soft jaws) | GD2 | Collet Range | Cylinder Stroke | |
| SM-RBC 32 | 6.8 | 0.59(0.060) | 1.4 | 4 | | SM-RBC 50 | 13.3 | 1.86(0.19) | 1.4 | 4 | | SM-RBC 65 | 34 | 6.96(0.71) | 1.4 | 4 | | SM-RBC 90 | 55 | 19.6(2.00) | 1.4 | 4 |
|
|
 |
|

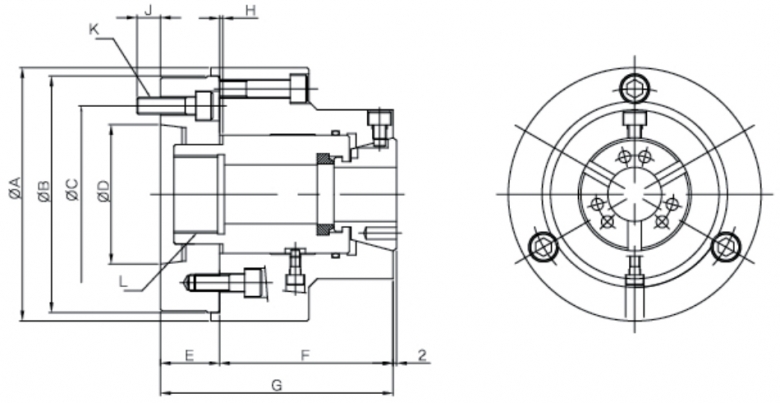

Item
Model
|
A | C | D | E | F | H |
| SM-RBC 32 | 165 | 130 | 6-M10 | 18 | M42XP1.5 | 103 | | SM-RBC 50 | 165 | 130 | 6-M10 | 18 | M55XP2.0 | 103 | | SM-RBC 65 | 180 | 150 | 6-M12 | 18 | M75XP2.0 | | | SM-RBC 90 | 210 | 180 | 6-M12 | 18 | M78XP2.0 | 133 |
|
|
Item
Model
|
K | Bro | G MAX | G MIN | J MAX | J MIN | |
| SM-RBC 32 | M24XP3.0 | 150 | 21.5 | 18.5 | 39 | 36 | | SM-RBC 50 | M24XP3.0 | 150 | 21.5 | 18.5 | 39 | 36 | | SM-RBC 65 | M30XP3.0 | 170 | 30.0 | 27.0 | 43 | 40 | | SM-RBC 90 | M30XP3.0 | 200 | 32.0 | 29.0 | 48 | 45 |
|
|
