3-JAW COMPENSATING CHUCK_SWING TYPE(SM-COD) |
|
 |
• This is a Shaft processing Chuck only.
• It can using the Spring Center. When there are cross section's distance control. And also, It is able to obtaining the high precision degree by the Chuck. Jaw's pulling function. Furthemore. It can using the Dead Center. Where they required fixation degree about the Center.
|
|
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
Spec
Model
|
Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Max. permissible input force KN(kgf) | Max. static gripping force KN(kgf) |
| SM-COD 06 | 8 | 15 | 50 | 14.7(1500) | 25(2540) | | SM-COD 08 | 8 | 20 | 65 | 19.6(2000) | 53(5400) | | SM-COD 10 | 10 | 25 | 90 | 29.4(3000) | 67.7(6900) | | SM-COD 12 | 10 | 25 | 110 | 39.2(4000) | 88.3(9000) |
|
|
Spec
Model
|
Max. Permissible speed r.p.m | weight(With standard soft jaws) | matching cylinder | GD2 | |
| SM-COD 06 | 2800 | 15 | YAS-100 | 0.49(0.05) | | SM-COD 08 | 2800 | 23 | YAS-125 | 1.27(0.13) | | SM-COD 10 | 2400 | 37 | YAS-125 | 2.74(0.28) | | SM-COD 12 | 2000 | 54 | YAS-140 | 6.37(0.65) |
|
|
 |
|

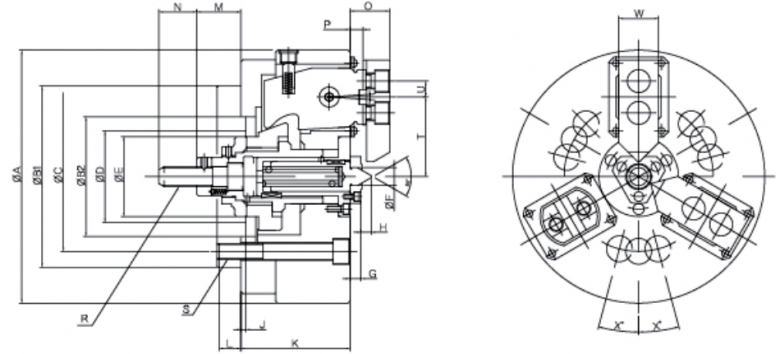

Item
Model
|
A | C | D | E | F | G | H | J | K | L | N | O |
| SM-COD 06 | 175 | 160 | 70 | 60 | 8 | 15 | 6.9 | 5 | 80 | 22 | 38 | 33 | | SM-COD 08 | 210 | 160 | 82 | 70 | 10.4 | 10 | 9 | 5 | 100 | 22 | 38 | 38 | | SM-COD 10 | 254 | 180 | 92 | 80 | 12.7 | 12 | 11 | 5 | 110 | 22 | 38 | 40 | | SM-COD 12 | 304 | 216 | 98 | 85 | 12.7 | 12 | 11 | 5 | 120 | 22 | 46 | 51 |
|
|
Item
Model
|
P | R | S | | | W | X | Bro | B1 | M MAX | M MIN | |
| SM-COD 06 | 10 | M16 | 3-M16 | 57 | 53 | 31 | - | 90 | 160 | 47 | 32 | | SM-COD 08 | 12 | M16 | 3-M16 | 68 | 64 | 40 | - | 105 | 160 | 50.5 | 30.5 | | SM-COD 10 | 13 | M20 | 3-M16 | 82.5 | 77.5 | 40 | - | 120 | 180 | 57 | 32 | | SM-COD 12 | 14 | M24 | 3-M16 | 102.5 | 97.5 | 50 | 15degree | 140 | 216 | 61 | 36 |
|
|
