HIGH-SPEED POWER CHUCK WITH COUNTER BALANCE (SM-SPD) |
|
 |
• It able to safety cutting by the initial grasp power maintained in high speed rotation. The reason that there were equpped the weight which is reducing the grasp power loss by the centrifugal force of inner chuck.
|
|
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
Spec
Model
|
Thru-hole(Diameter) mm | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) |
| SM-SPD 06 | 33 | 5.5 | 12 | 165 | 13 | 19.60(2000) | | SM-SPD 08 | 46 | 7.4 | 16 | 210 | 11 | 30.39(3100) | | SM-SPD 10 | 65 | 8.8 | 19 | 254 | 31 | 37.25(3800) | | SM-SPD 12 | 78 | 10.6 | 23 | 304 | 34 | 48.04(4900) | | SM-SPD 15 | 117.5 | 10.6 | 23 | 381 | 30 | 69.61(7100) |
|
|
Spec
Model
|
Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | matching cylinder | GD2 | |
| SM-SPD 06 | 50.00(5100) | 6700 | 14.9 | YAH-06 | 0.24 | | SM-SPD 08 | 76.47(7800) | 5600 | 25.5 | YAH-08 | 0.59 | | SM-SPD 10 | 97.06(9900) | 4500 | 36.1 | YAH-10 | 1.27 | | SM-SPD 12 | 126.47(12900) | 3500 | 30.4 | YAH-12 | 3.0 | | SM-SPD 15 | 176.47(18000) | 2800 | 111 | YAH-15 | 9.1 |
|
|
 |
|

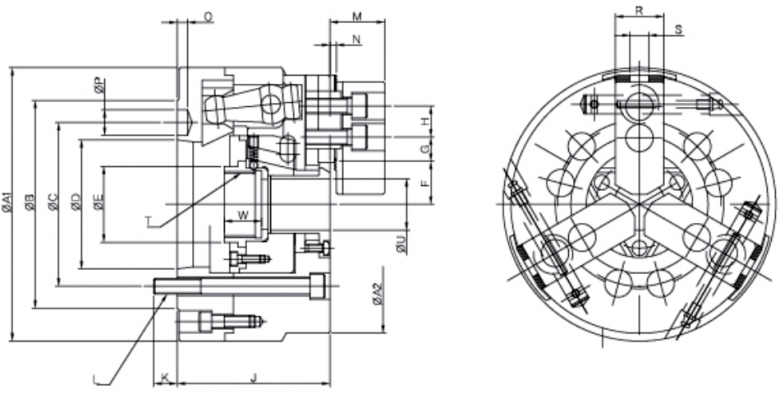

Item
Model
|
B | C | D | E | H | J | K | L | M | N | O | P |
| SM-SPD 06 | 135 | 104.78 | 82.552 | 48.8 | 20 | 98 | 15 | 6-M10 | 33 | 4 | 6.5 | 16.28 | | SM-SPD 08 | 165 | 133.35 | 106.375 | 61 | 25 | 110 | 18 | 6-M12 | 39 | 5 | 6.5 | 19.46 | | SM-SPD 10 | 210 | 171.45 | 139.719 | 84.5 | 30 | 114 | 24 | 6-M16 | 45 | 5 | 8 | 24.21 | | SM-SPD 12 | 210 | 171.45 | 139.719 | 96 | 30 | 125 | 23 | 6-M16 | 51 | 5 | 8 | 24.21 | | SM-SPD 15 | 281 | 235 | 196.869 | 139 | 43 | 154 | 30 | 6-M20 | 70 | 5 | 10 | 29.36 |
|
|
Item
Model
|
R | S | T | | W | A1 | A2 | F MAX | F MIN | G MAX | G MIN | |
| SM-SPD 06 | 31 | 12 | M42XP1.5 | 33 | 20 | 175 | 165 | 27.5 | 24.75 | 26.25 | 8.25 | | SM-SPD 08 | 35 | 14 | M55XP2.0 | 46 | 25 | 215 | 210 | 35.7 | 32 | 31.25 | 10.25 | | SM-SPD 10 | 40 | 16 | M75XP2.0 | 65 | 30 | 254 | 254 | 50 | 45.6 | 33.75 | 11.25 | | SM-SPD 12 | 50 | 21 | M88XP2.0 | 78 | 33 | 304 | 304 | 58 | 52.7 | 48.75 | 11.25 | | SM-SPD 15 | 62 | 22 | M130XP2.0 | 117.5 | 33 | 381 | 381 | 82 | 76.7 | 46.75 | 13.75 |
|
|
