AIR CHUCK (SM-AIR) |
|
 |
• The Air Chuck mainly using to nonferrous metals and ceramic materials or concerned about transforming process materials. And also, It has equipped the Cylinder inner chuck.
• It is able to getting the high precision degree more than oil pressure chuck.
|
|
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
Spec
Model
|
Jaw stroke(Diameter) mm | Plunger stroke mm | Max. permissible input force KN(kgf) | Max. static gripping force KN(kgf) |
| SM-AIR 03 | 3.5 | 16 | 15.68(1600) | 46.08(4700) | | SM-AIR 04 | 3.5 | 16 | 23.53(2400) | 64.71(6600) | | SM-AIR 06 | 4 | 18.5 | 31.37(3200) | 86.27(8800) | | SM-AIR 08 | 4 | 18.5 | 13.14(4400) | 118.63(12100) | | SM-AIR 10 | 5 | 20 | 58.82(6000) | 136.27(13900) |
|
|
Spec
Model
|
Max. Permissible speed r.p.m | Gripping dia(out) | Gripping dia(inside) | Jaw Amount | |
| SM-AIR 03 | 6000 | 8/165 | 48/165 | 3.5 | | SM-AIR 04 | 5500 | 12/210 | 62/210 | 3.5 | | SM-AIR 06 | 5000 | 25/254 | 75/254 | 4 | | SM-AIR 08 | 4200 | 25/304 | 75/304 | 4 | | SM-AIR 10 | 3000 | 30/381 | 82/381 | 5 |
|
|
 |
|

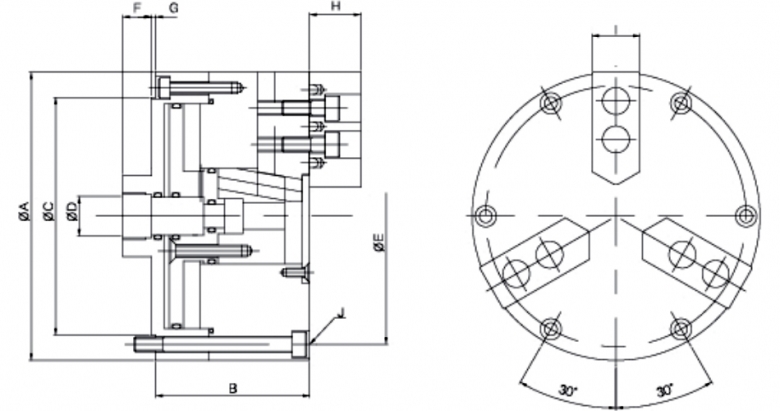

Item
Model
|
A | B | D | E |
| SM-AIR 03 | 80 | 55 | 20.6 | 70 | | SM-AIR 04 | 100 | 55 | 20.6 | 88.9 | | SM-AIR 06 | 150 | 56 | 20.6 | 135.8 | | SM-AIR 08 | 203 | 73 | 23.8 | 182.9 | | SM-AIR 10 | 254 | 81 | 23.8 | 233.7 |
|
|
Item
Model
|
Cro | F MAX | F MIN | |
| SM-AIR 03 | 60 | 17 | 9.8 | | SM-AIR 04 | 82.55 | 18 | 10.8 | | SM-AIR 06 | 124.97 | 17.6 | 10.4 | | SM-AIR 08 | 167.64 | 15.9 | 8.7 | | SM-AIR 10 | 215.9 | 15.9 | 8.7 |
|
|
