3-JAW CLOSED CENTER LONG STROKE POWER CHUCK (CASL)

This is a 3-Jaws Hollowness standard style with the Long Stroke.
It is using to clamping part which needs the Long Stroke structure.
Spec
Model
Jaw stroke(Diameter) mmPlunger stroke mmGripping MaxGripping MinMax. permissible input force KN(kgf)
CASL-059.41313088.8(900)
CASL-0613181652014.7(1500)
CASL-0816222102229.4(3000)
CASL-1018252542534.3(3500)
CASL-1220283042844.1(4500)
Spec
Model
Max. static gripping force KN(kgf)Max. Permissible speed r.p.mweight(With standard soft jaws)Gd moment of inertiamatching cylinder
CASL-0514.7(1500)35004.60.10(0.010)YAS-80
CASL-0632.4(3300)4000110.34(0.035)YAS-100
CASL-0864.7(6600)4000211.18(0.12)YAS-125
CASL-1073.5(7500)3000332.65(0.27)YAS-150
CASL-1297.1(9900)2500556.27(0.64)YAS-150
Item
Model

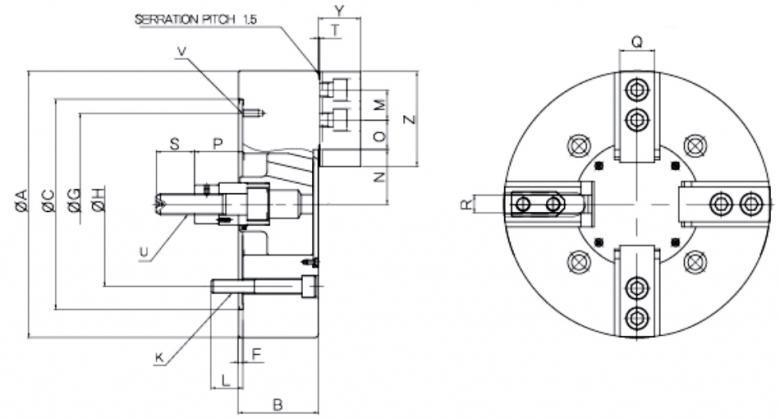

ACDEHJKLMN MaxN MinO
CASL-0513082.6-2850516M123-M1014136
CASL-06165104.8383263517M166-M10291136
CASL-08210133.4483877521M206-M12341236
CASL-10254133.4585085523M246-M12441946
CASL-12304171.4655297525M276-M16502250
Item
Model
PRSTWBroF MAXF MING MAXG MIN
CASL-052952519581011532.828.113.54.5
CASL-063453020721214038.832.3187.5
CASL-084453525951419042.834.83013.5
CASL-1054540301101623048.839.840.515
CASL-1263550301111828057.547.54515
